Chrysler Warren Plant Automation Project

Pictures of the automation systems I designed, built and installed in the Chrysler Warren Ohio plant can be found below.

The purpose of this was to track the movement of truck bodies in the plant using RFID technology.

The auto bodies needed to be matched up with the correct parts and paint on the assembly line

This project required close coordination with plant engineers and a lot of advance design and testing

I, by myself, sourced, ordered, and assembled everything you see here.

I built several of these assemblies.

I fully tested and debugged any issues in the lab prior to taking it to Chrysler

Pictures of my work are below

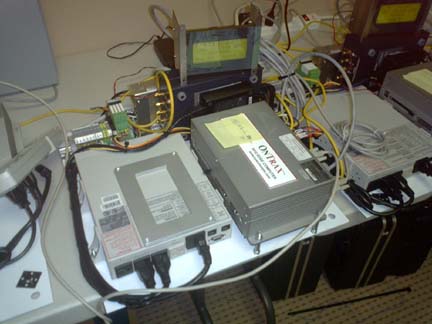

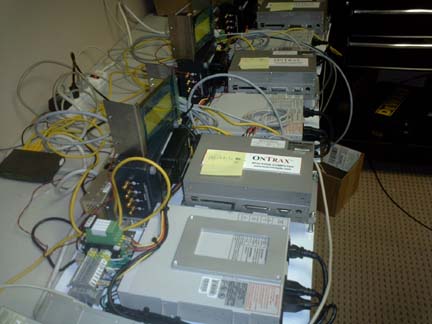

Testing assembly in the lab prior to taking to Chrysler

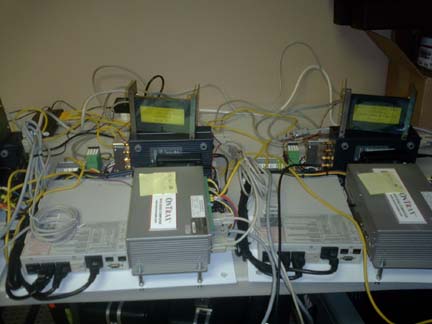

Testing assembly in the lab

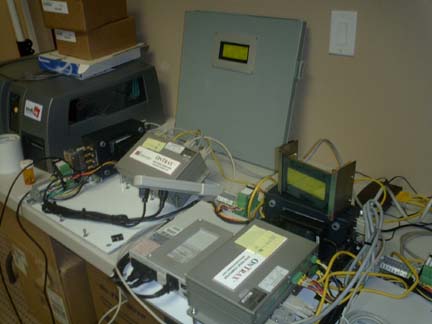

Testing assembly in the lab prior to taking to Chrysler




Testing assembly in the lab prior to taking to Chrysler

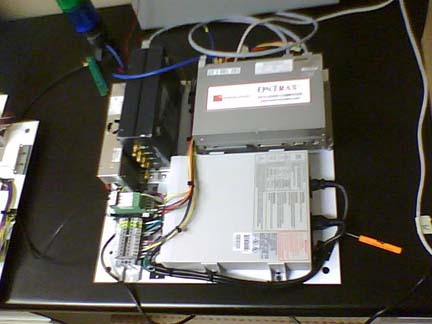

Back panel assembly

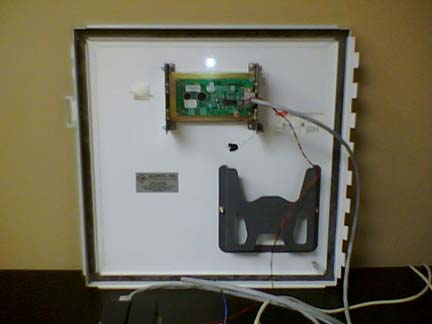

Backside of Front Panel

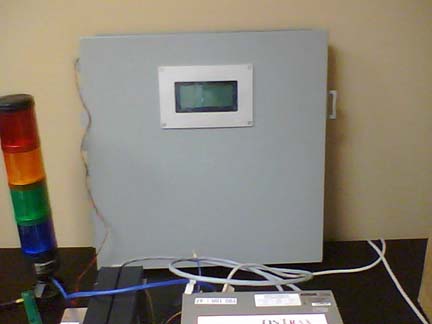

Frontside of Front Panel

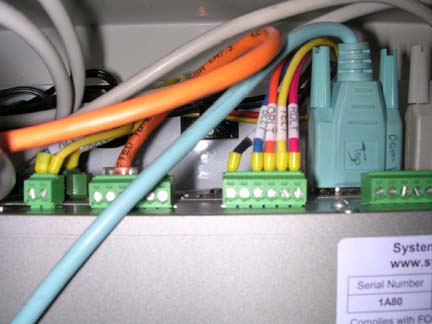

IO Wiring for lights, sensors, and display panel

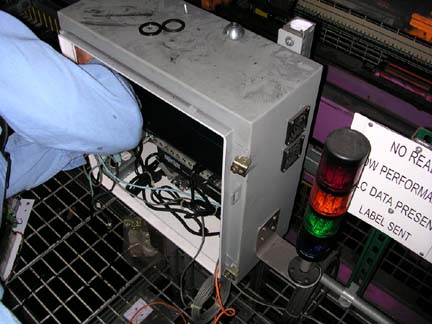

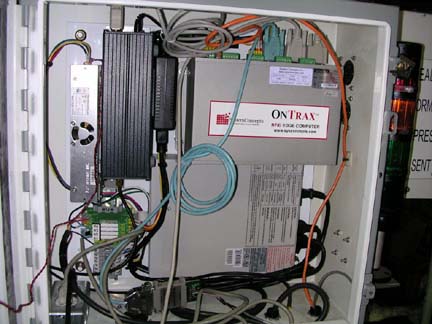

One of the NEMA enclosures I assembled and installed

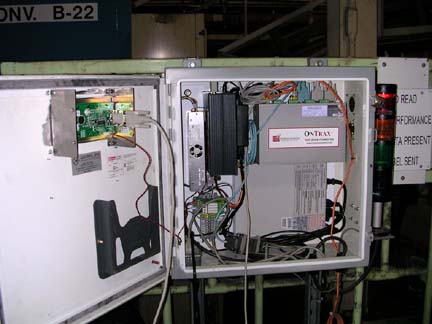

Another NEMA enclosure I assembled and installed.

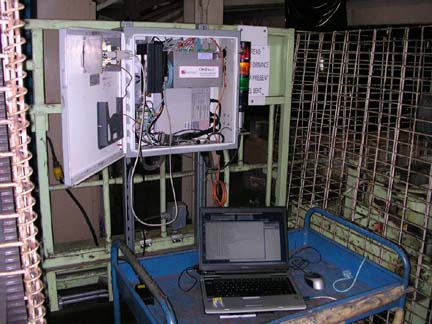

This is me performing final testing in the field after I installed it at Chrysler




And yet another NEMA enclosure I assembled and installed

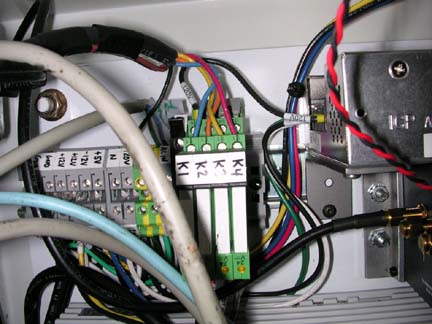

Relay IO wiring




And yet another NEMA enclosure I assembled and installed

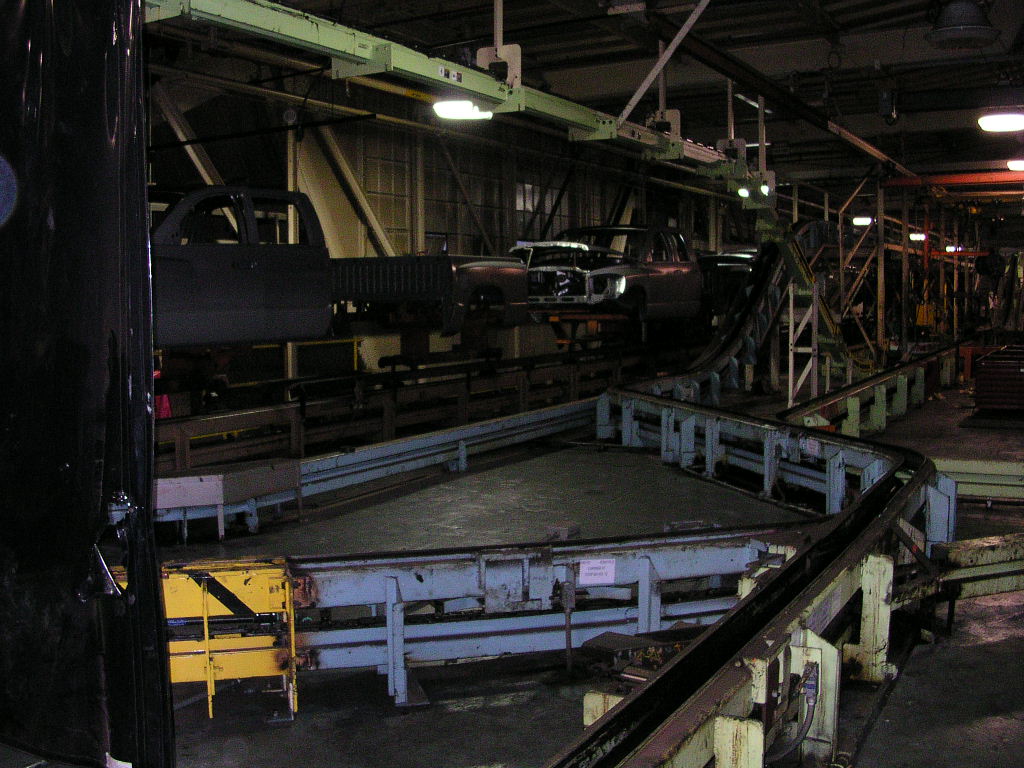

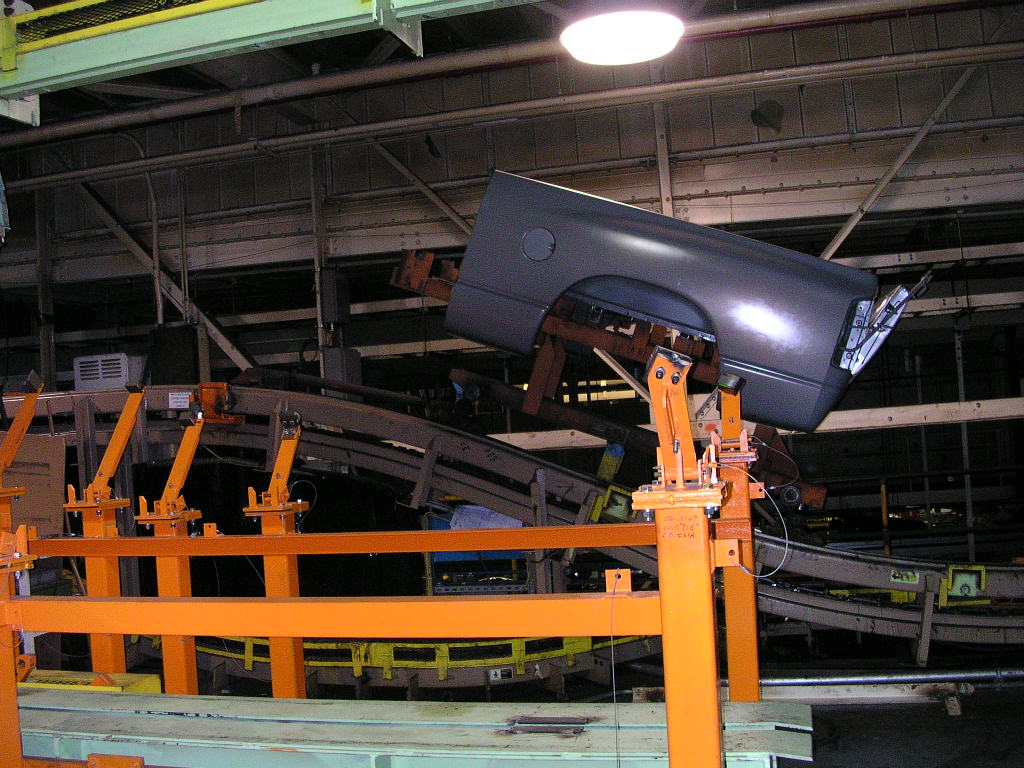

Chrysler Warren plant pictures




Chrysler Warren plant pictures








Me wiring up equipment on site
